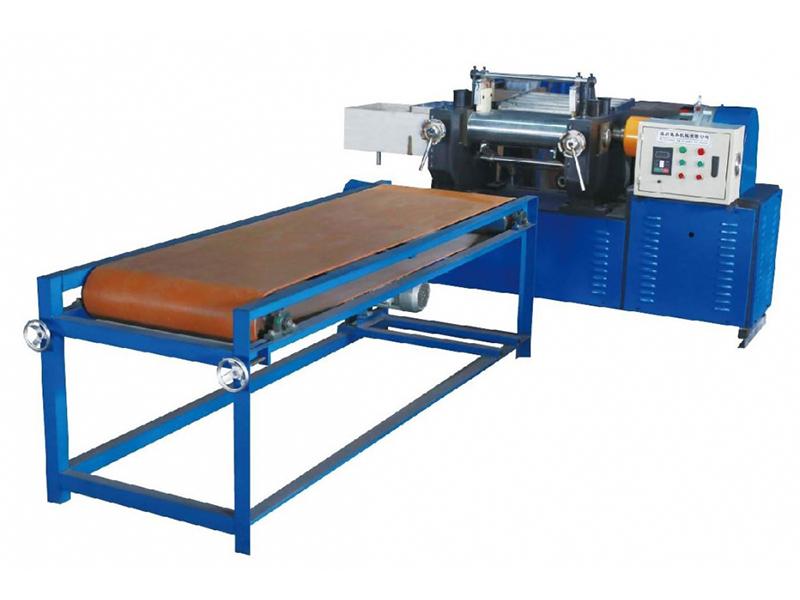

2-Roll Calender
The 2-Roll Calender is used to calendar (or roll) the rubber into sheet form. The rubber material is fed into the machine and then pulled into the roller gap by frictional force and pressed into rubber sheet by the two rollers.
- The two adjacent rollers rotate relative to each other at the same speed to form uniform rubber sheets.
- By calendaring between the two rollers, multilayer rubber sheet can be pressed.
- In production, the rubber material can be extruded onto the steel cord fabric to produce patterns on the surface of the rubber sheet.
Calender
Roller size：170*600 mm
Rolling thickness：0.2-8 mm
Power:4 kw
Linear speed：1.4-14.3 m/min
Overall size：1800*850*1100 mm
Weight:1100 kg
Conveyor
Conveyor width：600 mm
Power:0.75 kw
Overall size：3900*760*720 mm
Weight:720 kg
Providing customers with complete footwear manufacturing solutions, Chengben Machinery is here to satisfy all of your shoemaking needs. Our equipment can be applied in the production of all sorts of shoes, including rubber shoes, leather shoes, sneakers, rain boots, and PVC slippers. Our footwear production lines can be tailored to your needs, ensuring you have all of the necessary machinery to make your own high-quality products with outstanding efficiency and speed. Besides that, we offer excellent after-sales services to back up our equipment, ensuring the equipment is always working as intended and minimizing downtime.
